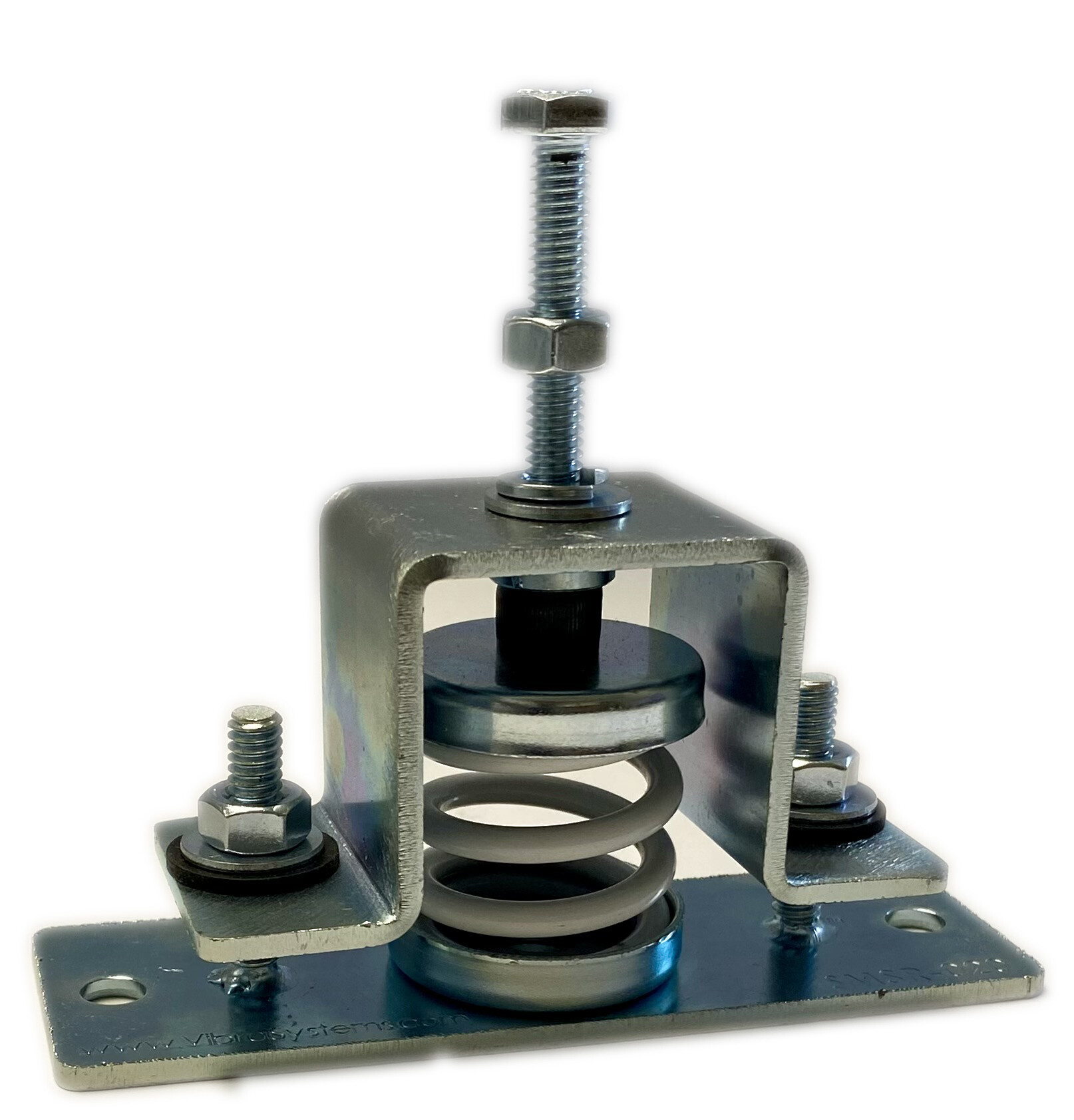

3.4SMSR-AA/AF/AT - Spring Isolator/Restrainer

SMSR-AA/AF/AT spring mounts are designed to provide efficient isolation from critical vibrations and all-directional restraint from vertical and horizontal shocks, as well as from forces due to seismic activities and high wind loads.

There are three available configurations used during the installation of these spring vibration isolators:

SMSR-AA: top with an angle, and inside leveling adjustment feature
SMSR-AF: flat top, with inside leveling adjustment feature
SMSR-AT: bolted top with leveling adjustment feature

Recommended for vibration attenuation in:

HVAC equipment, fan air circulation systems, compressors, pumps, chillers, AC units, cooling towers, inertia bases, etc.

SMSR-AA

SMSR-AF

SMSR-AT

SMSR-AA/AF/AT - Dimensions

Printable Pages:

SMSR-AA/AF/AT

Installation Instructions

SMSR-AA: STEP file

SMSR-AF: STEP file

SMSR-AT: STEP file

Features:

Steel housing designed to withstand seismic and high wind forces.

Available 1" and 2" Deflection at rated load.

All springs at rated loads have 50% additional travel to solid load.

Safety factor - Springs will accommodate 50% extra load from rated load to solid load.

Certified ASHRAE 171-2017.

Zinc plated housing for excellent corrosion resistance.

All springs are coated with baked enamel for good corrosion resistance.

Springs are color-coded for easy field identification.

All mounts' elements are safe at solid load.

Click Here for Heavy-duty Seismic Restrained Spring Mounts:

Please contact us for larger volume orders as further discounts may apply.

Model	Rated Load (lbs)	Deflection at Rated Load (in)	Spring Rate (lbs/in)	Spring Colour	Shipping Weight (lbs)	Price
1'' DEFLECTION
SMSR-101	50	1	50	Blue	4.5	$48.00 USD
SMSR-103	120	1	120	Brown	4.5	$48.00 USD
SMSR-142	135	1.50	90	Plated	4.5	$48.00 USD
SMSR-105	270	1	270	Yellow	4.5	$48.00 USD
SMSR-106	400	1	400	Red	4.5	$48.00 USD
SMSR-144	400	1.50	266	Plated	4.5	$48.00 USD
SMSR-107	650	1	650	Green	4.5	$48.00 USD
SMSR-146	850	1.50	566	Plated	4.5	$48.00 USD
SMSR-109	900	1	900	White	4.5	$48.00 USD
SMSR-110	1,250	1	1,250	Red w/Orange line	4.5	$48.00 USD
SMSR-148	1,250	1.25	1,000	Plated	4.5	$48.00 USD
SMSR-109-100	1,550	1	1,550	White/Grey	5		Inquire
SMSR-110-100	1,900	1	1,900	Red w/Orange line/Grey	5		Inquire
2'' DEFLECTION
SMSR-170	43	2	22	Blue	4.5	$58.00 USD
SMSR-140	80	2	40	Plated	4.5	$58.00 USD
SMSR-172	155	2	78	Orange	4.5	$58.00 USD
SMSR-174	236	2	118	White	4.5	$58.00 USD
SMSR-175	300	2	150	Brown	4.5	$58.00 USD
SMSR-176	395	2	198	Black	4.5	$58.00 USD
SMSR-178	550	2	275	Pink	4.5	$58.00 USD
SMSR-176-180	695	2	347	Black/Grey	5	$68.00 USD
SMSR-178-180	850	2	425	Pink/Grey	5	$68.00 USD

Note: When product price is not shown, please call our office for technical consultation prior to place an order

Notes:

a) Wind and Seismic Certification Compliance Report 1701502-CR-001-R1 is available upon request

b) 100 Spring: 2” Outside diameter x 4” Free Length.

c) 170 & 140 Spring: 2” Outside diameter x 5” Free Length.

d) Rated load is the maximum load recommended.

e) For springs 142, 144, 146, and 148 the operating height is about 5-1/8".

f) Anti-skid rubber acoustical pad can be provided upon request.

Applications: Spring vibration isolators are used in a wide range of applications, such as:

HVAC Systems: Isolating heating, ventilation, and air conditioning units to prevent vibrations from being transmitted to the building structure.

Industrial Machinery: Reducing vibrations in heavy machinery to improve performance and longevity.

Electronics and Instrumentation: Protecting sensitive equipment from external vibrations that could affect their accuracy and functionality.

Construction: Isolating structures from ground vibrations, especially in areas prone to earthquakes or heavy traffic.

Aerospace: Minimizing vibrations in aircraft to ensure passenger comfort and structural integrity.
