8.1Flexible Duct Connectors | High-Quality Vibration & Noise Control Solutions

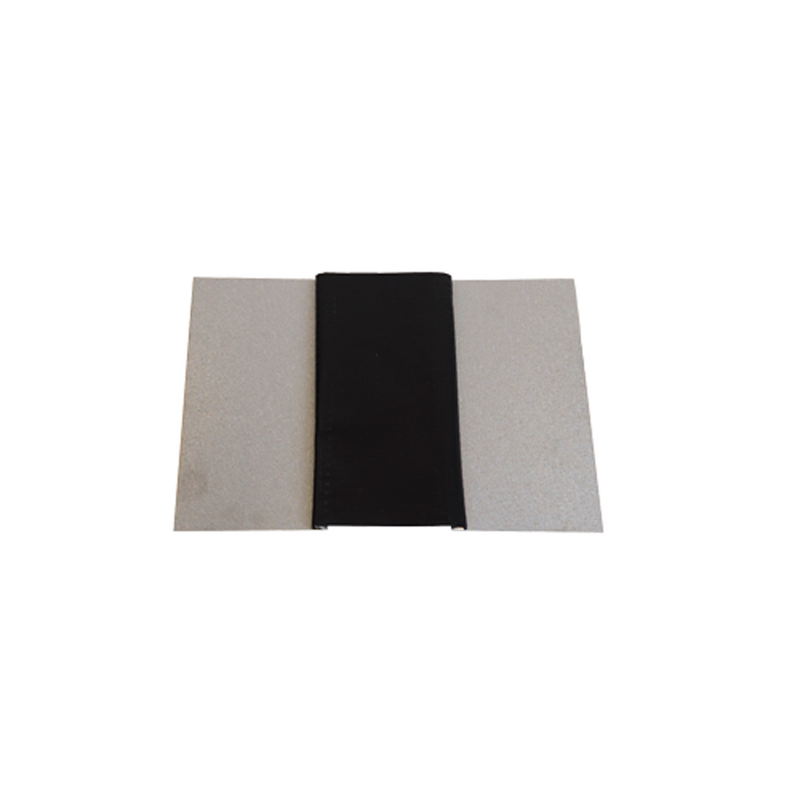

Silicon Flexible Duct Connector
In order to isolate vibrations caused by air handling units, fans, or other equipment connected to air ducts, it is highly recommended to install a flexible duct connector joint between the outlet of these devices and the air duct.
Technical description
- Fabric made of Fiberglass cloth, coated on both sides with Silicone
- Galvanized steel thickness 0,6 mm (24 ga)
- Seam Type LOC 3
- Standard length of roll: 30,5 m (100 ft)
- Other lengths and sizes on request

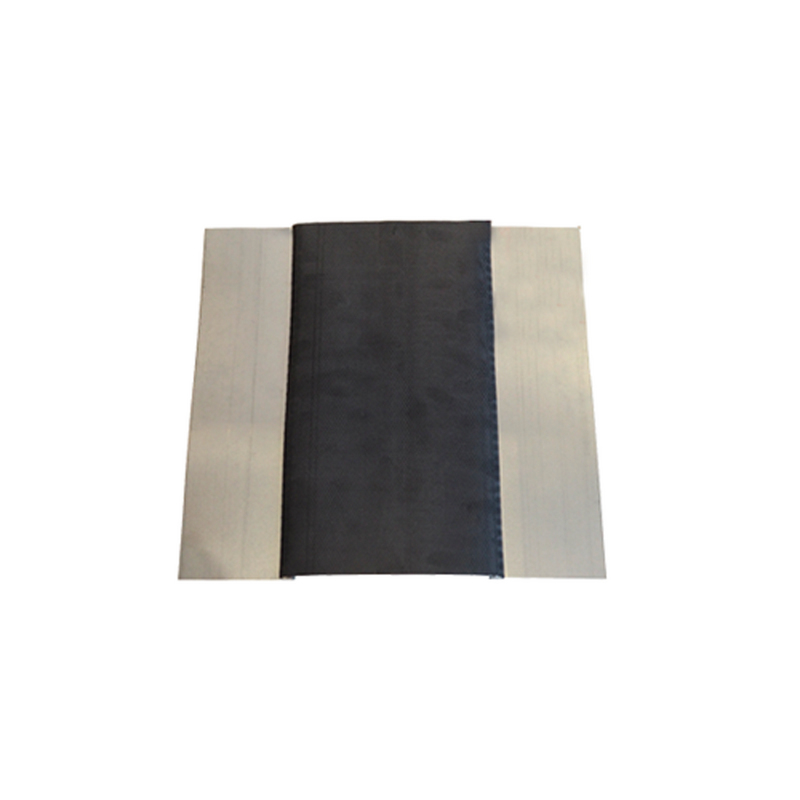

Neoprene Flexible Duct Connector
In order to isolate vibrations caused by air handling units, fans, or other equipment connected to air ducts, it is highly recommended to install a flexible duct connector joint between the outlet of these devices and the air duct.
Technical description
- Fabric made of Fiberglass cloth, coated on both sides with Polychloroprene (Neoprene)
- Galvanized steel thickness 0,6 mm (24 ga)
- Seam Type LOC 3
- Standard length of roll: 30,5 m (100 ft)
- Other lengths and sizes on request
PVC Flexible Duct Connector
In order to isolate vibrations caused by air handling units, fans, or other equipment connected to air ducts, it is highly recommended to install a flexible duct connector joint between the outlet of these devices and the air duct.
Technical description
- Fabric made of Polyester cloth, coated on both sides with black PVC
- Galvanized steel thickness 0,6 mm (24 ga)
- Seam Type LOC 3
- Standard length of roll: 30,5 m (100 ft)
- Other lengths and sizes on request
Flexible Duct Connector:

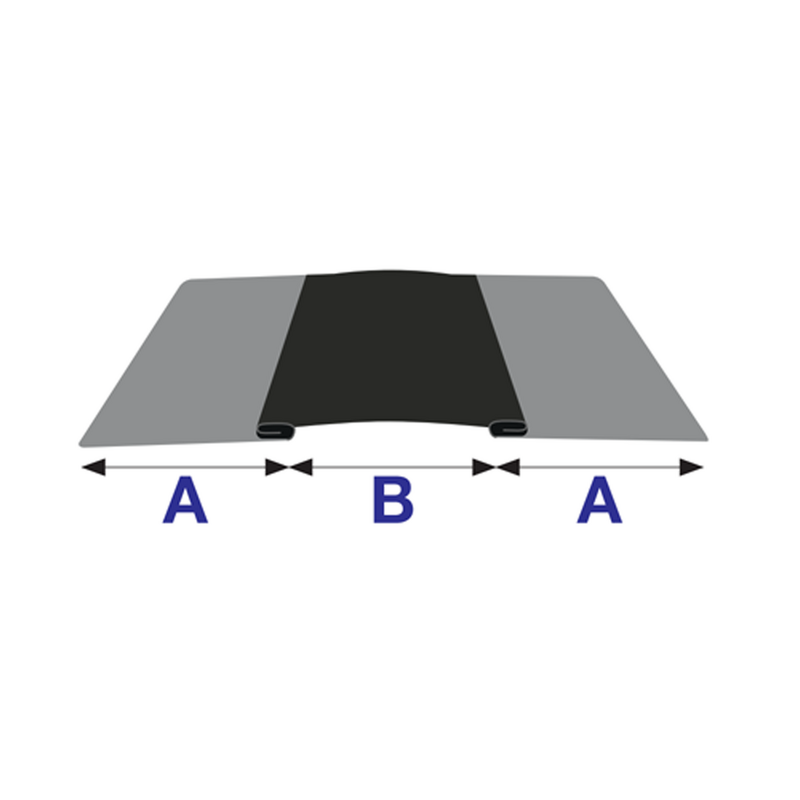

| Part No. | Thickness | Width | Length | Wt. / Sq.ft. (lbs) | Price | Quantity | Total | |
|---|---|---|---|---|---|---|---|---|
| Silicon Flexible Duct Connector | ||||||||
| EF-24-SIL-3X3X3-100FT | 0.6 mm | 3x3x3 in | 100 m | $373.00 USD |
| |||
| EF-24-SIL-3X6X3-100FT | 0.6 mm | 3x6x3 in | 100 m | $471.00 USD |
| |||
| Neoprene Flexible Duct Connector | ||||||||
| EF-24-NEO-3X3X3-100FT | 0.6 mm | 3x3x3 in | 100 m | $539.00 USD |
| |||
| EF-24-NEO-3X6X3-100FT | 0.6 mm | 3x6x3 in | 100 m | $752.00 USD |
| |||
| PVC Flexible Duct Connector | ||||||||
| EF-24-ROBG-3X3X3-100FT | 0.6 mm | 3x3x3 in | 100 m | $336.00 USD |
| |||
| EF-24-ROBG-3X6X3-100FT | 0.6 mm | 3x6x3 in | 100 m | $395.00 USD |
| |||
Application:-
1. At a notch, cut a length equivalent to the perimeter required plus an overlap of 5 to 6 cm (2’’) for joining
2. Lift the seam outwards at a right angle
3. Cut the edge of the lifted seam section
4. Bend down the seam whilst ensuring that the cloth remains fastened
5. Coat the cloth with the appropriate adhesive or use our self-adhesive pads (if appropriate).Join both sides and press together firmly
6. Spotweld the steel and form to the desired shape
