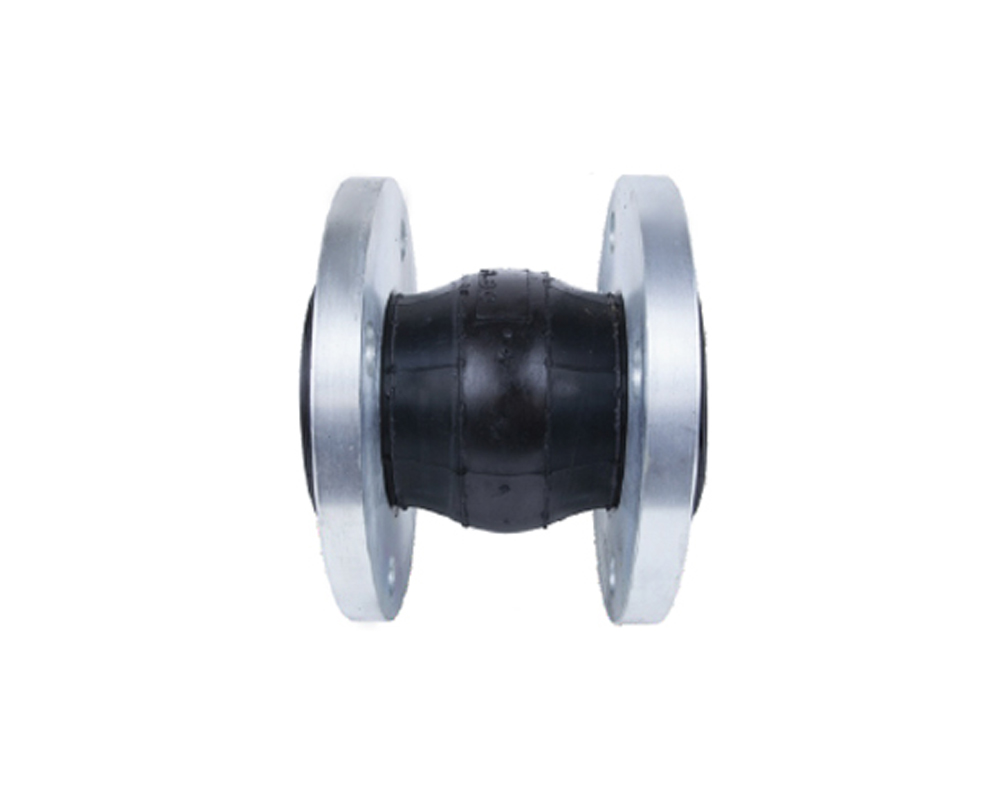

15.1Single-Sphere Floating Flange Rubber Bellow (Series EFSS)
APPLICATIONS:-
- Pumps & air compressors in air conditioning system & sanitary equipment.
- Refrigeration systems and blowers in industrial plant equipment.
- Feed-water and drainage equipment in marine piping systems.
- Applicable for use in power generation and chemical plants.
- Marine applications
Features:
Applicable for suction and delivery (discharge).
Provides sound and vibration isolation.
Gaskets and packing are not required.
Floating flanges allow for easy installation.
Prevents piping system and equipment breakdown by absorbing elongation and contraction caused by temperature variances.
Absorbs water pulsation and minimizes water hammering.
| Models | Nominal Pipe Size Inch | Face To Face Dimension (Inch) | Allowable Motion Ratings* Compression Inch | Allowable Motion Ratings* Elongation Inch | Allowable Motion Ratings* Lateral | Allowable Motion Ratings* Angular | Installation Tolerances Compression | Price | Quantity | Total | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| REJSAFF-1"X6"-EP-CSF-CL150 | 1 | 6 | 1/2 | 3/8 | 1/2 | 15° | 3/16 | Inquire | |||
| REJSAFF-1.25"X6"-EP-CSF-CL150 | 1.25 | 6 | 1/2 | 3/8 | 1/2 | 15° | 3/16 | Inquire | |||
| REJSAFF-1.5"X6"-EP-CSF-CL150 | 1-1/2 | 6 | 1/2 | 3/8 | 1/2 | 15° | 3/16 | Inquire | |||
| REJSAFF-2"X6"-EP-CSF-CL150 | 2 | 6 | 1/2 | 3/8 | 1/2 | 15° | 3/16 | Inquire | |||
| REJSAFF-2.5"X6"-EP-CSF-CL150 | 2-1/2 | 6 | 1/2 | 3/8 | 1/2 | 15° | 3/16 | Inquire | |||
| REJSAFF-3"X6"-EP-CSF-CL150 | 3 | 6 | 1/2 | 3/8 | 1/2 | 15° | 3/16 | Inquire | |||
| REJSAFF-4"X6"-EP-CSF-CL150 | 4 | 6 | 5/8 | 3/8 | 1/2 | 15° | 3/16 | Inquire | |||
| REJSAFF-5"X6"-EP-CSF-CL150 | 5 | 6 | 5/8 | 3/8 | 1/2 | 15° | 3/16 | Inquire | |||
| REJSAFF-6"X6"-EP-CSF-CL150 | 6 | 6 | 5/8 | 3/8 | 1/2 | 15° | 3/16 | Inquire | |||
| REJSAFF-8"X6"-EP-CSF-CL150 | 8 | 6 | 5/8 | 3/8 | 1/2 | 15° | 3/16 | Inquire | |||
| REJSAFF-10"X8"-EP-CSF-CL150 | 10 | 8 | 5/8 | 1/2 | 3/4 | 15° | 3/16 | Inquire | |||
| REJSAFF-12"X8"-EP-CSF-CL150 | 12 | 8 | 3/4 | 1/2 | 3/4 | 15° | 3/16 | Inquire | |||
| REJSAFF-14"X8"-EP-CSF-CL150 | 14 | 8 | 3/4 | 1/2 | 3/4 | 15° | 3/16 | Inquire | |||
| REJSAFF-16"X8"-EP-CSF-CL150 | 16 | 8 | 3/4 | 1/2 | 3/4 | 15° | 3/16 | Inquire | |||
| REJSAFF-18"X8"-EP-CSF-CL150 | 18 | 8 | 3/4 | 1/2 | 3/4 | 15° | 3/16 | Inquire | |||
| REJSAFF-20"X8"-EP-CSF-CL150 | 20 | 8 | 3/4 | 1/2 | 3/4 | 15° | 3/16 | Inquire | |||
| REJSAFF-24"X10"-EP-CSF-CL150 | 24 | 10 | 3/4 | 1/2 | 3/4 | 15° | 3/16 | Inquire |
Note: When product price is not shown, please call our office for technical consultation prior to place an order
We apologise for the inconvenience but this product is currently unavailable online. Please contact us directly to place your order
