10.5EFSH - Spring Hangers

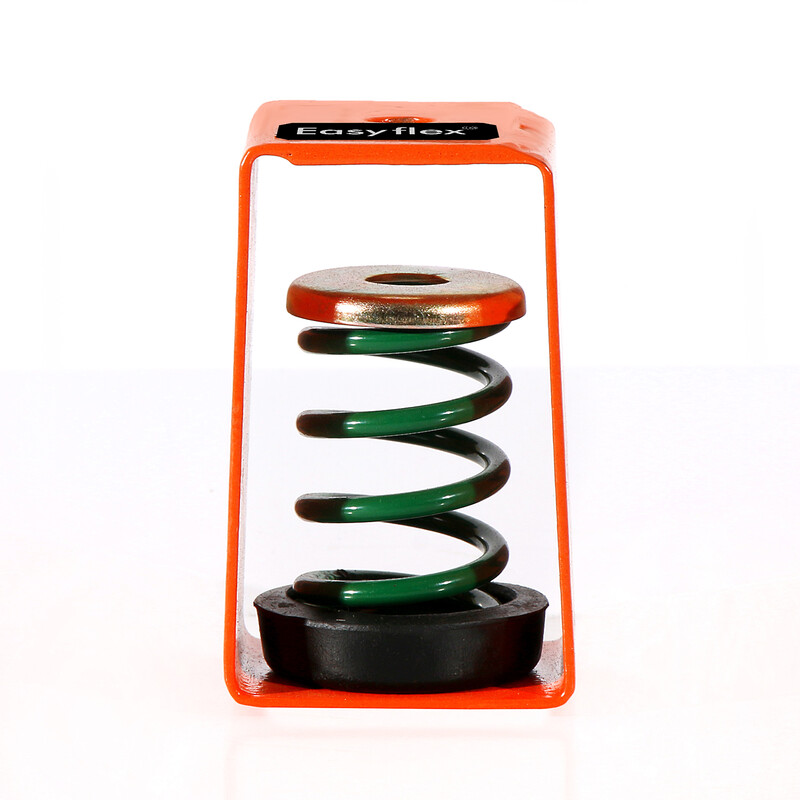

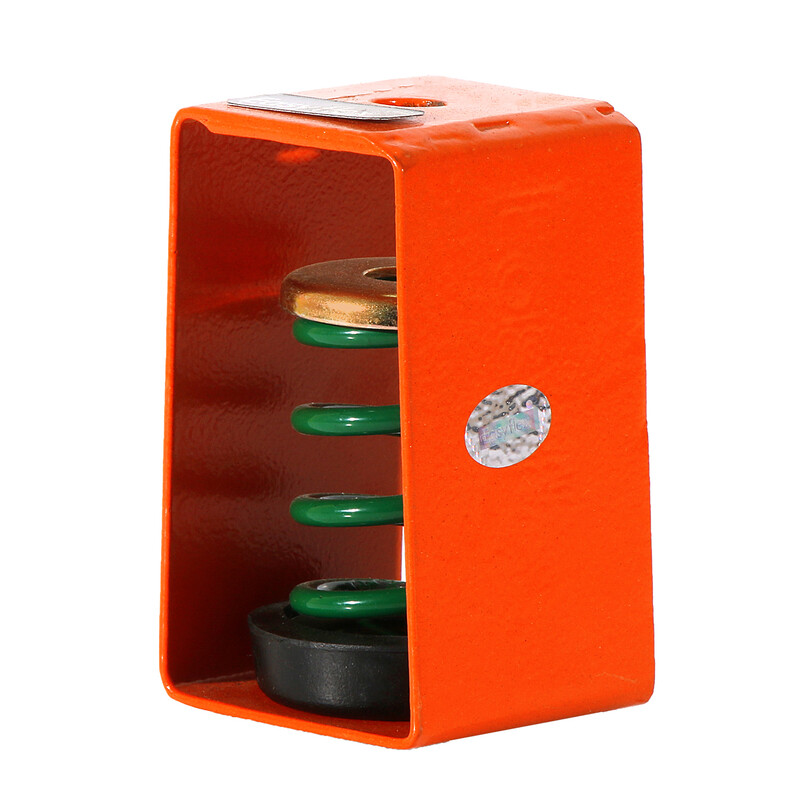

EFSH Spring Hangers consist of freestanding. laterally stable steel springs in series with a molded elastomeric element assembled into a stamped and welded hanger bracket. The hanger brackets and the springs are powder-coated. Spring vibration isolation hangers are designed to provide high-efficiency isolation from structure-borne vibration and noise. Springs are color-coded and in compliance with ASHRAE guidelines; springs are designed with a horizontal stiffness of at least 100% of the vertical stiffness to ensure stability. This is achieved through high spring diameter to operating height ratios - 0.85 to 1.0 (as against the minimum of 0.80 required by ASHRAE).
Model | Rated Load (lbs) | Deflection at Rated Load (in) | Spring Rate (lbs/in) | Spring Colour | Shipping Weight (lbs) | Price | Quantity | Total | |
---|---|---|---|---|---|---|---|---|---|
EFSH 20/15 | 33 | 0.75 | 33 | WHITE | 0.44 | Inquire | |||
EFSH 20/30 | 66 | 0.75 | 66 | YELLOW | 0.44 | Inquire | |||
EFSH 20/50 | 110 | 0.75 | 110 | PURPLE | 0.44 | Inquire | |||
EFSH 25/10 | 22 | 1 | 22 | PURPLE | 0.75 | Inquire | |||
EFSH 25/15 | 33 | 1 | 33 | YELLOW | 0.75 | Inquire | |||
EFSH 25/20 | 44 | 1 | 44 | GREY | 0.76 | Inquire | |||
EFSH 25/40 | 88 | 1 | 88 | LIGHT BLUE | 0.76 | Inquire | |||
EFSH 25/60 | 132 | 1 | 132 | GREEN | 0.84 | Inquire | |||
EFSH 25/100 | 220 | 1 | 220 | GREEN | Inquire | ||||
EFSH 25/160 | 352 | 1 | 352 | ORANGE | Inquire | ||||
EFSH 25/200 | 440 | 1 | 440 | RED | Inquire | ||||
EFSH 25/250 | 550 | 1 | 550 | PURPLE | Inquire | ||||
EFSH 25/300 | 660 | 1 | 660 | GREY | Inquire | ||||
EFSH 25/400 | 880 | 1 | 880 | ORANGE | Inquire | ||||
EFSH 25/500 | 1100 | 1 | 1100 | BROWN | Inquire | ||||
EFSH 25/600 | 1320 | 1 | 1320 | BLACK | Inquire | ||||
EFSH 25/800 | 1760 | 1 | 1760 | RED | Inquire | ||||
EFSH 25/1050 | 2310 | 1 | 2310 | WHITE | Inquire | ||||
EFSH 25/1250 | 2750 | 1 | 2750 | GREEN | Inquire |
Applications:-
EFSH Hangers are used to isolate suspended sources of both noise and vibration. Suspended mechanical equipment such as air handling units, FCU's cabinet fans, piping, and ductwork in close proximity to rotating mechanical equipment are typical applications of model EFSH hangers.
Compliance - Springs designed according to BS 1726 (Part 1) and recommendations made by SAE (US) and ASHRAE
