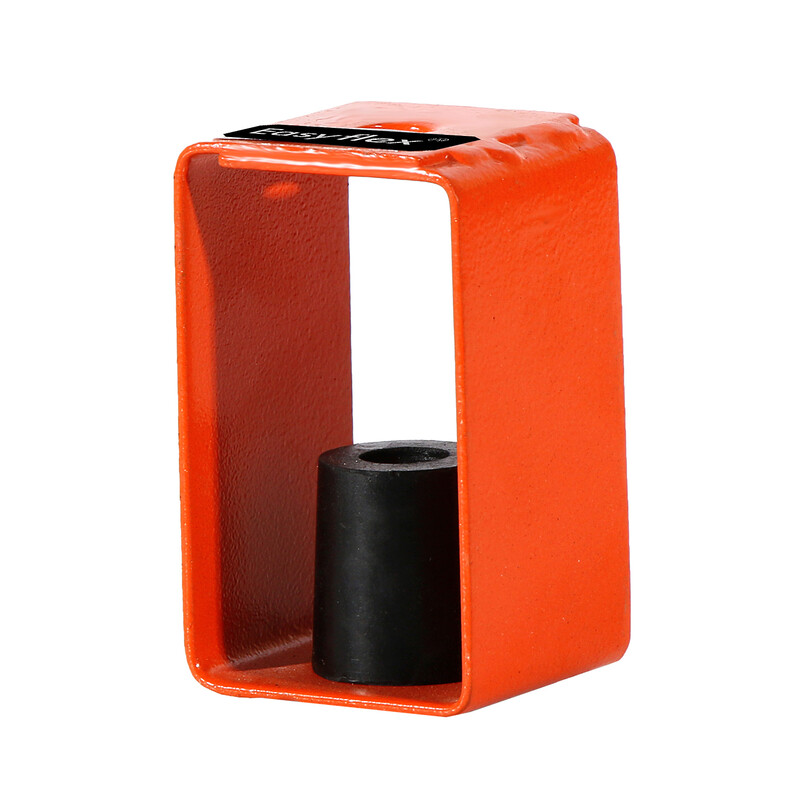

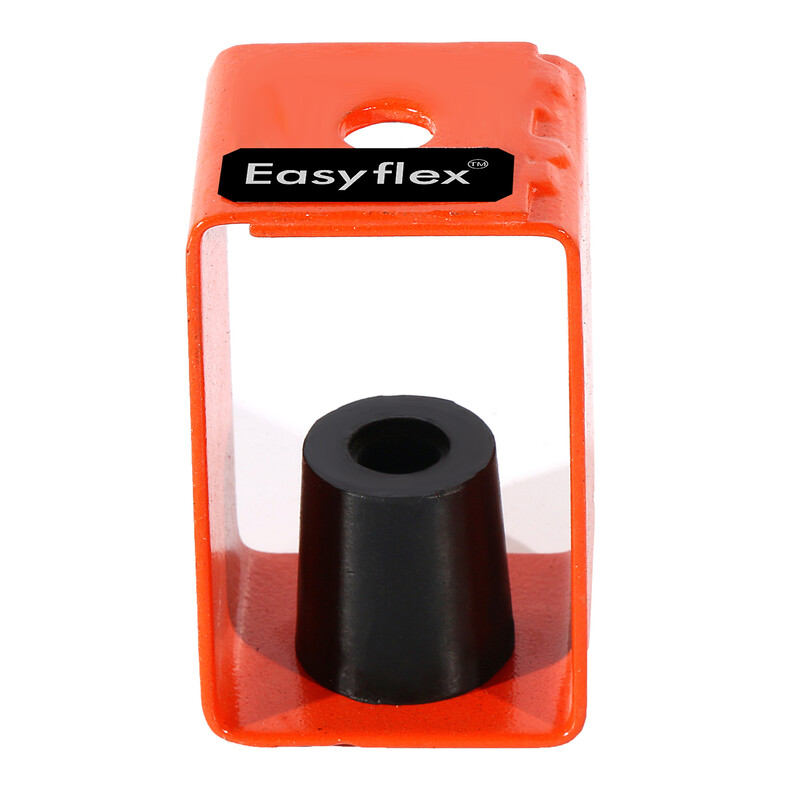

10.4EFRH - Rubber Hangers
Vibration Isolation Hangers effectively Isolate transmission of Vibration and Structurally Sound. Hangers prevent many installation errors by permitting degree of freedom of movement of piping thus frequently eliminating the need of Flexible Hose Connections. Hangers will also take care of expansion problems of riser Pipe lines
Features:
Constructed of a Neoprene Element in a square bracket.
Compact Model for Space Saving Installations.
Low cost, low deflection hanger for machinery with operating speeds of >1000RPM
Please contact us for larger volume orders as further discounts may apply.
| Model | Point Load | Deflection (inch) | Rod Size (inch) | Price | Quantity | Total | |
|---|---|---|---|---|---|---|---|
| EFRH120 | 264 | 0.24 | 0.39 | Inquire | |||
| EFRH070 | 154 | 0.24 | 0.31 | Inquire | |||
| EFRH035 | 77 | 0.31 | 0.31 | Inquire | |||
| EFRH025 | 55 | 0.24 | 0.31 | Inquire |
Note: When product price is not shown, please call our office for technical consultation prior to place an order
Typical Suspension Applications:-
- Acoustical Ceiling
- Air Handling Units
- Air Conditioner
- Axial Fans Blowers
- Cooling and Heating Equipment
- Ductwork Exhaust System
- Fan Coil Units
