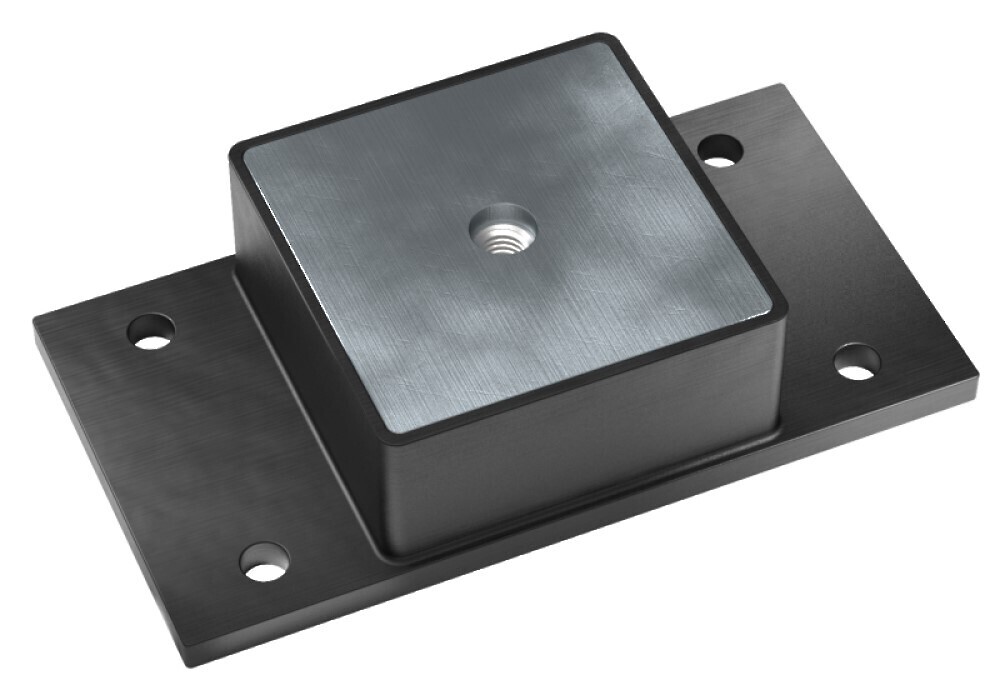

1.2VTMS - Heavy Duty Vibration Dampers
Vibration Isolation Heavy Duty Dampeners are Used to Isolate Vibration from Equipment.
VTMS compression shear isolators are designed for heavy-duty applications where shear loads could be up to 30% of maximum load when in combination with the vertical load.
Recommended for:
Vibration isolation of presses, blowers, pumps, engines, vibrators, rolling mills, crushers, transformers, injection molding machines, surface grinders, and similar equipment.
Features:
Low installation height provides better stability under lateral loads.
Effectively isolates machine vibration and shock loads from transferring to the floor.
Stainless steel for marine, food/pharmaceutical applications, and other corrosive environments.
Please contact us for larger volume orders as further discounts may apply.

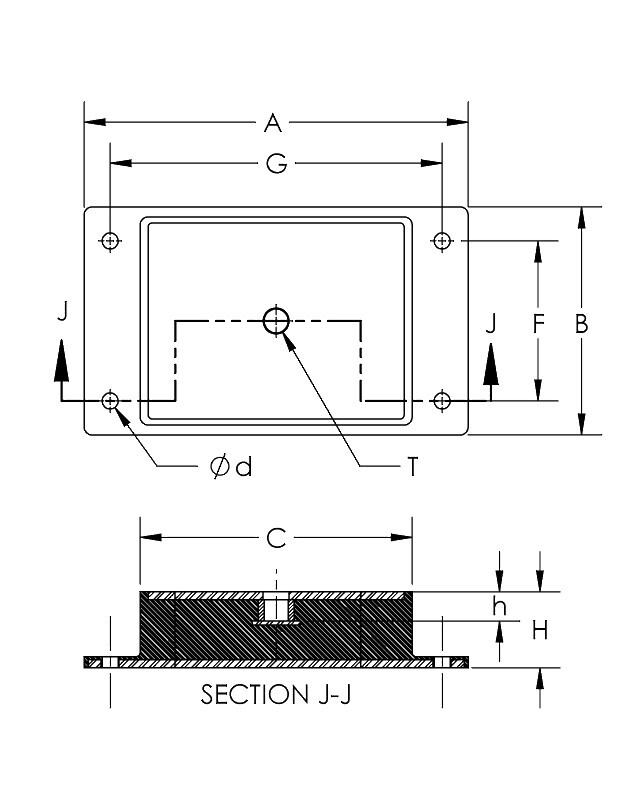

| Model | Metal Finish | Non-Impact | Impact | A | B | C | F | G | H | h | d | T | Shipping Weight (lbs) | Price | Quantity | Total | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VTMS-2 | Stainless Steel | 2,000 | 1,200 | 8 | 4 | 4 | 3 | 6 | 2 | 1 | 3/8 | 1/2-13 | 4.5 | $270.00 USD |
| ||
| VTMS-3 | Stainless Steel | 3,000 | 1,800 | 8 | 4 | 4 | 3 | 6 | 2 | 1 | 3/8 | 1/2-13 | 4.5 | $296.00 USD |
| ||
| VTMS-5 | Stainless Steel | 5,000 | 3,000 | 8 | 4 | 4 | 3 | 6 | 2 | 1 | 3/8 | 1/2-13 | 4.5 | $320.00 USD |
| ||
| VTMS-10 | Stainless Steel | 8,000 | 4,000 | 12 | 7-1/4 | 8-1/2 | 5 | 10-3/8 | 2-3/8 | 1-1/4 | 9/16 | 3/4-10 | 14 | $540.00 USD |
| ||
| VTMS-15 | Stainless Steel | 15,000 | 9,000 | 12 | 7-1/4 | 8-1/2 | 5 | 10-3/8 | 2-3/8 | 1-1/4 | 9/16 | 3/4-10 | 14 | $596.00 USD |
|
Note: When product price is not shown, please call our office for technical consultation prior to place an order
Notes:
- For marine, offshore, and other corrosive environments, mounts are made of 316L stainless steel and EPDM rubber compound.
- For food, pharmaceutical, and hygiene critical applications, mounts are made of 304 stainless steel and food-grade rubber compounds.
- Contact Vibrasystems Inc. technical department for optimal material selection.
