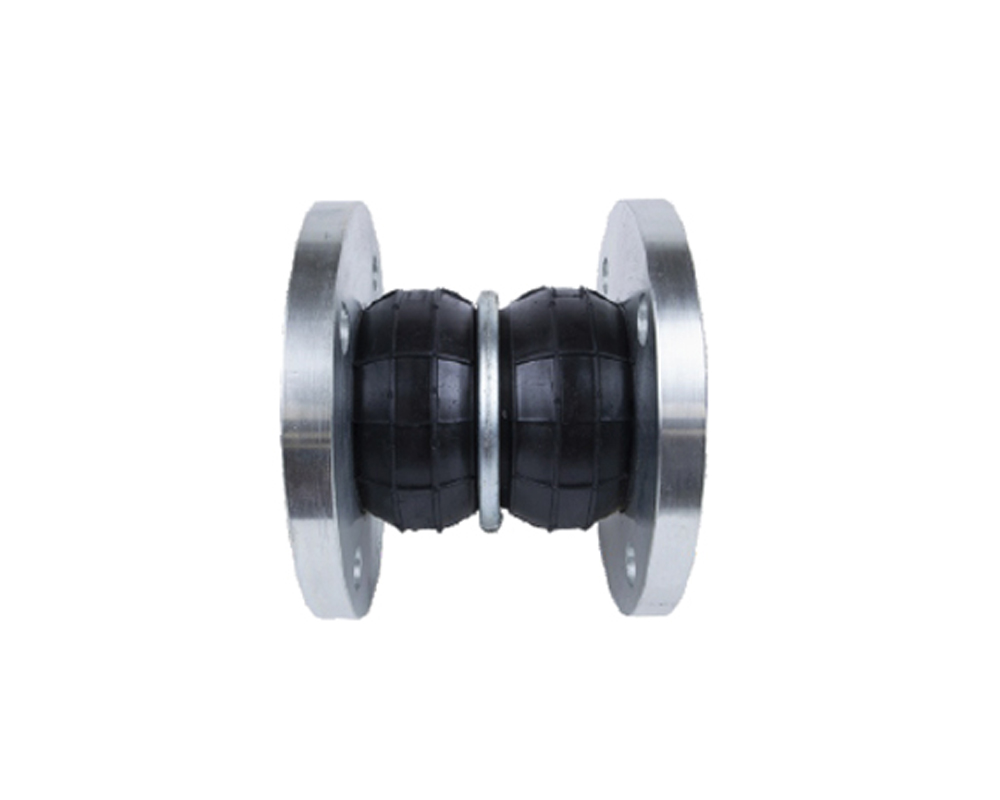

15.2Double Arch Floating Flange Bellow (Series EFTS)
Applications:-
- Pressure piping systems in building equipment and general industrial plants.
- Pump and turbine lines used for power generation plants, industrial machinery and universal pump blowers.
- Feed-water & drainage lines for waterworks & sanitary piping systems.
- Pipelines for industrial plants and shipbuilding yards.
Features:
Applicable for suction and delivery (discharge).
Designed for greater compression, elongation, and angular movement than the single sphere expansion joint.
Excellent for absorbing thermal expansion and eliminating sound and vibration.
Gaskets and packing not required.
Good electrical insulator.
Absorbs water pulsation and minimizes water hammering.
| Models | Nominal Pipe Size Inch | Face To Face Dimension (Inch) | Allowable Motion Ratings* Compression (Inch) | Allowable Motion Ratings* Elongation (Inch) | Allowable Motion Ratings* Lateral (Inch) | Allowable Motion Ratings* Angular | Price | Quantity | Total | |
|---|---|---|---|---|---|---|---|---|---|---|
| REJDAFF-1"X6"-EP-CSF-CL150 | 1 | 7 | 2 | 1-1/8 | 1-3/4 | 35° | Inquire | |||
| REJDAFF-1.25"X6"-EP-CSF-CL150 | 1.25 | 7 | 2 | 1-1/8 | 1-3/4 | 35° | Inquire | |||
| REJDAFF-1.5"X6"-EP-CSF-CL150 | 1-1/2 | 7 | 2 | 1-1/8 | 1-3/4 | 35° | Inquire | |||
| REJDAFF-2"X6"-EP-CSF-CL150 | 2 | 7 | 2 | 1-1/8 | 1-3/4 | 35° | Inquire | |||
| REJDAFF-2.5"X6"-EP-CSF-CL150 | 2-1/2 | 7 | 2 | 1-1/8 | 1-3/4 | 35° | Inquire | |||
| REJDAFF-3"X6"-EP-CSF-CL150 | 3 | 7 | 2 | 1-3/8 | 1-3/4 | 35° | Inquire | |||
| REJDAFF-4"X6"-EP-CSF-CL150 | 4 | 9 | 2 | 1-3/8 | 1-9/16 | 35° | Inquire | |||
| REJDAFF-5"X6"-EP-CSF-CL150 | 5 | 9 | 2 | 1-3/8 | 1-9/16 | 30° | Inquire | |||
| REJDAFF-6"X6"-EP-CSF-CL150 | 6 | 9 | 2 | 1-3/8 | 1-9/16 | 30° | Inquire | |||
| REJDAFF-8"X6"-EP-CSF-CL150 | 8 | 13 | 2-3/8 | 1-3/8 | 1-3/8 | 30° | Inquire | |||
| REJDAFF-10"X8"-EP-CSF-CL150 | 10 | 13 | 2-3/8 | 1-3/8 | 1-3/8 | 30° | Inquire | |||
| REJDAFF-12"X8"-EP-CSF-CL150 | 12 | 13 | 2-3/8 | 1-3/8 | 1-3/8 | 20° | Inquire | |||
| REJDAFF-14"X8"-EP-CSF-CL150 | 14 | 13-3/4 | 1-9/16 | 1-1/8 | 1-1/8 | 20° | Inquire | |||
| REJDAFF-16"X8"-EP-CSF-CL150 | 16 | 13-3/4 | 1-9/16 | 1-1/8 | 1-1/8 | 20° | Inquire | |||
| REJDAFF-18"X8"-EP-CSF-CL150 | 18 | 13-3/4 | 1-9/16 | 1-1/8 | 1-1/8 | 20° | Inquire | |||
| REJDAFF-20"X8"-EP-CSF-CL150 | 20 | 13-3/4 | 1-9/16 | 1-1/8 | 1-1/8 | 20° | Inquire | |||
| REJDAFF-24"X10"-EP-CSF-CL150 | 24 | 13-3/4 | 1-9/16 | 1-1/8 | 1-1/8 | 20° | Inquire |
Note: When product price is not shown, please call our office for technical consultation prior to place an order
Note: Customised for flanges ANSI-150, ANSI-300 and DIN (Other Drilling Available on Request)
Warning: Do NOT elongate rubber expansion joints when installing for suction service.
