13.3SS Braided Flexible Pump Connectors (Series MHC-R)

Stainless steel braided connectors are a great overall solution for connecting to cold and hot water pumps (relatively unaffected by temperature) and are impervious to today's water-conditioning chemicals. Standard Pump Connectors are constructed of SS304 hose and SS304 braid with ANSI B16.5 150# flanged connections. Standard flanges are manufactured from painted mild carbon steel. However, pump connectors can also be manufactured in SS316 or SS321 stainless steel and supplied with alternative flange standards to suit specific application requirements.

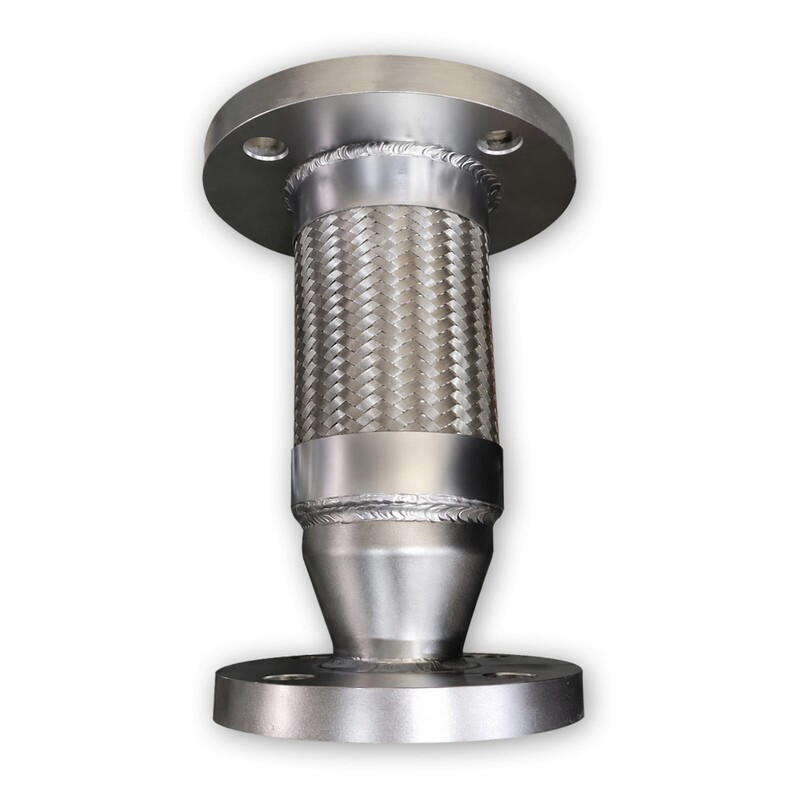

Easyflex stainless steel reduction pump connectors combine a close-corrugated stainless steel hose with a tightly woven stainless steel overbraid. The Easyflex Style MPC-R braided flexible metal reduction pump connector has been designed to control a variety of mechanical stresses.

Printable Pages:

SS Braided Flexible Pump Connectors (Series MHC-R)

Features:

Vibration control

Noise reduction

Relief from system stressors

Prevention of system shock

Compensation for misalignment and movement

SS Braided Flexible Pump Connectors:

Models	Nominal Pipe Size Small Flange inch	Nominal Pipe Size Large Flange inch	Overall Length inch	Pressure Rating PSI(g) Single Braiding	Temperature °F	Shipping Weight (lbs)
MHC-R-1-1/2"X2"X13"-CSF-CL150	1-1/2	2	13	435	70	16	Inquire
MHC-R-1-1/2"X3"X13"-CSF-CL150	1-1/2	3	13	348	70	18	Inquire
MHC-R-1-1/2"X4"X13"-CSF-CL150	1-1/2	4	13	232	70	20	Inquire
MHC-R-2"X2-1/2"x13"-CSF-CL150	2	2-1/2	13	348	70	17	Inquire
MHC-R-2"X3"x13"-CSF-CL150	2	3	13	261	70	18	Inquire
MHC-R-2"X4"x13"-CSF-CL150	2	4	13	232	70	22	Inquire
MHC-R-2"X6"x13"-CSF-CL150	2	6	13	145	70	30	Inquire
MHC-R-2-1/2"X3"x13"-CSF-CL150	2-1/2	3	13	261	70	21	Inquire
MHC-R-2-1/2"X4"x13"-CSF-CL150	2-1/2	4	13	232	70	25	Inquire
MHC-R-2-1/2"X5"x16"-CSF-CL150	2-1/2	5	16	203	70	30	Inquire
MHC-R-2-1/2"X5"x16"-CSF-CL150	2-1/2	6	16	145	70	34	Inquire
MHC-R-3"X4"x13"-CSF-CL150	3	4	13	232	70	26	Inquire
MHC-R-3"X6"x16"-CSF-CL150	3	6	16	145	70	35	Inquire
MHC-R-4"X5"x16"-CSF-CL15	4	5	16	203	70	34	Inquire
MHC-R-4"X6"x16"-CSF-CL150	4	6	16	145	70	38	Inquire
MHC-R-4"X8"x18"-CSF-CL150	4	8	18	116	70	56	Inquire
MHC-R-5"X6"x16"-CSF-CL150	5	6	16	145	70	41	Inquire

Note: When product price is not shown, please call our office for technical consultation prior to place an order

Ordinary flexible metal hoses can fail to operate properly when subjected to high pressures; adding a flexible restraint, such as a metal braid, allows the hose to adequately withstand the specified internal pressure and prevent elongation. The woven metal braid is designed to fit over the metal hose and to be strong enough to withstand elongation up to the full pressure rating of the hose.
