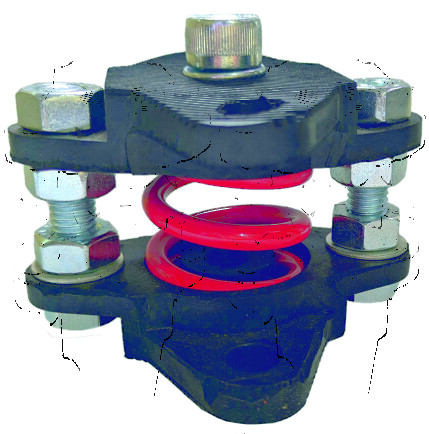

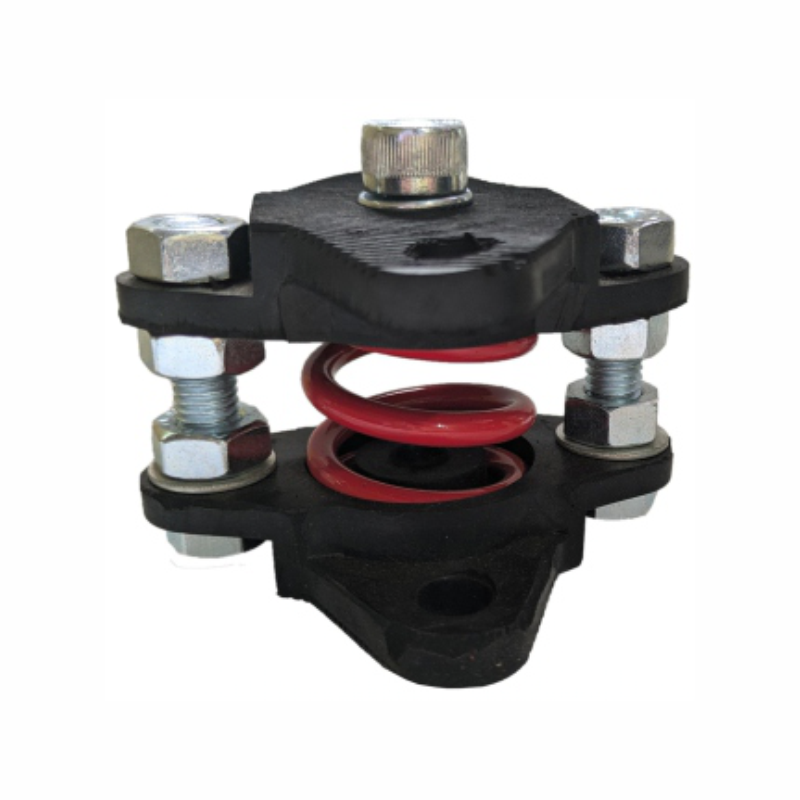

3.3EFLH - Low Height Spring Isolator
The EFLH Series is designed to provide optimal vibration isolation solutions for HVAC equipment, including Air Handling Units (AHUs), Air Washers, and other related applications. These spring isolators are engineered following the BS 1726 guidelines, ensuring lateral stability and enhanced performance.
Features:
Made of Carbon spring steel as per IS: 4454 Part-1 designed as per BS 1726-1-1987
Low height of the isolator provides necessary size reduction and help in installation, where space is a major constraint
Holding arrangement with toothed nuts and washers in zinc-plated steel to block the spring elasticity for in-trsnsit movement restrictions
Oil resistant elastomeric top and bottom plate maintains the isolators stability due to friction pads it also helps towards noise attention.
Height adjustment arrangement can be provided on request
Please contact us for larger volume orders as further discounts may apply.
| Model | Rated Load (lbs) | Deflection at Rated Load (in) | Spring Rate (lbs/in) | Spring Colour | Shipping Weight (lbs) | Price | Quantity | Total | |
|---|---|---|---|---|---|---|---|---|---|
| EFLH15-30 | 66 | 0.59 | 66 | YELLOW | - | - | Inquire | ||
| EFLH15-60 | 132 | 0.59 | 132 | BLUE | - | - | Inquire | ||
| EFLH15-80 | 176 | 0.59 | 176 | ORANGE | - | - | Inquire | ||
| EFLH15-100 | 220 | 0.59 | 220 | RED | - | - | Inquire | ||
| EFLH15-140 | 308 | 0.59 | 308 | GREEN | - | - | Inquire |
Note: When product price is not shown, please call our office for technical consultation prior to place an order
Application
Air Handling Units
Package Units
Centrifugal Fans
Outdoor Units
Compliance - Springs designed according to BS 1726 (Part 1) and recommendations made by SAE (US) and ASHRAE
