10.6EFSRH - Spring & Rubber Hangers

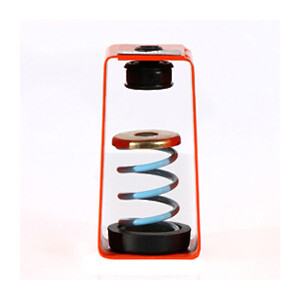

EFSRH Spring Hangers consist of freestanding. laterally stable steel springs in series with a molded elastomeric element assembled into a stamped and welded hanger bracket. The hanger brackets and the springs are powder coated. Spring vibration isolation hangers are designed to provide high-efficiency isolation from structure-borne vibration and noise. Springs are color-coded and in compliance with ASHRAE guidelines; springs are designed with a horizontal stiffness of at least 100% of the vertical stiffness to ensure stability. This is achieved through high spring diameter to operating height ratios - 0.85 to 1.0 (as against the minimum of 0.80 required by ASHRAE).. These Hangers are double deflection Hangers specially suitable for Seismic Applications.

Printable Pages:

Printable Page

Features:

Compensates for up to 30° rod misalignment

Can be preloaded to save valuable installation time

Double deflection rubber up to 13 mm (1/2″) deflection

Field interchangeable, colour coded springs

Powder coated housings and springs for superior corrosion protection, zinc plated fasteners

Standard spring deflection of 25 mm (1″) or 50 mm (2″)

Load capacity up to 2,560 kg (5,644 lb) as standard

Please contact us for larger volume orders as further discounts may apply.

Model	Rated Load (lbs)	Deflection at Rated Load (in)	Spring Rate (lbs/in)	Spring Colour
0.75'' DEFLECTION
EFSRH 20/15	33	0.75	33	WHITE	Inquire
EFSRH 20/30	66	0.75	66	YELLOW	Inquire
EFSRH 20/50	110	0.75	110	PURPLE	Inquire
1'' DEFLECTION
EFSRH 25/20	44	1	44	GREY	Inquire
EFSRH 25/40	88	1	88	LIGHT BLUE	Inquire
EFSRH 25/60	132	1	132	GREEN	Inquire
EFSRH 25/100	220	1	220	GREEN	Inquire
EFSRH 25/160	352	1	352	ORANGE	Inquire
EFSRH 25/200	440	1	440	RED	Inquire
EFSRH 25/250	550	1	550	PURPLE	Inquire

Note: When product price is not shown, please call our office for technical consultation prior to place an order

Applications:-

EFSRH Hangers are used to isolate suspended sources of both noise and vibration. Suspended mechanical equipment such as air handling units, FCU's cabinet fans, piping and ductwork in close proximity to rotating mechanical equipment are typical applications of model EFSRH hangers.

Compliance - Springs designed according to BS 1726 (Part 1) and recommendations made by SAE (US) and ASHRAE
