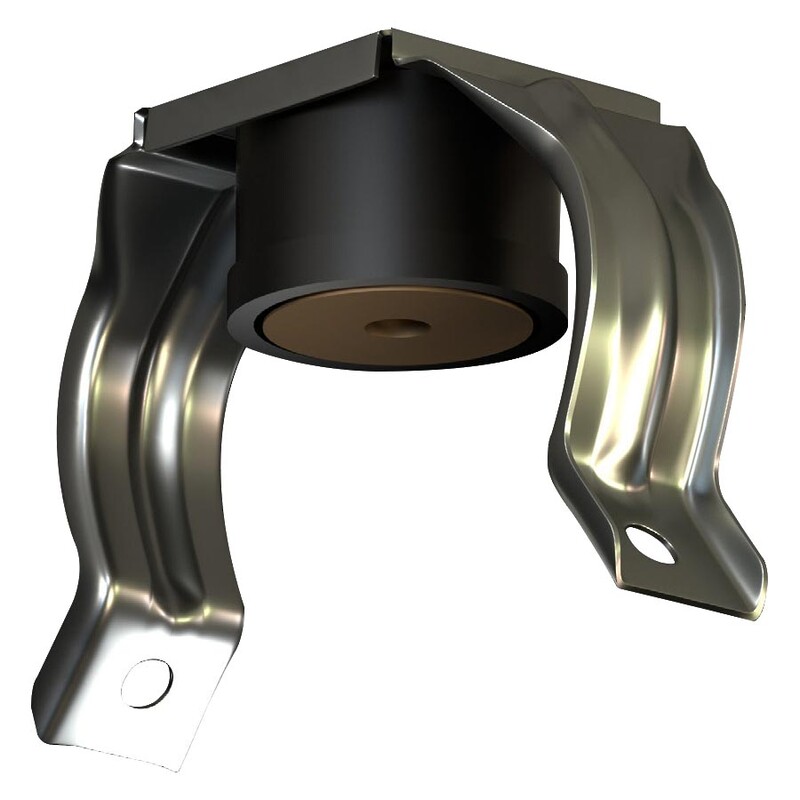

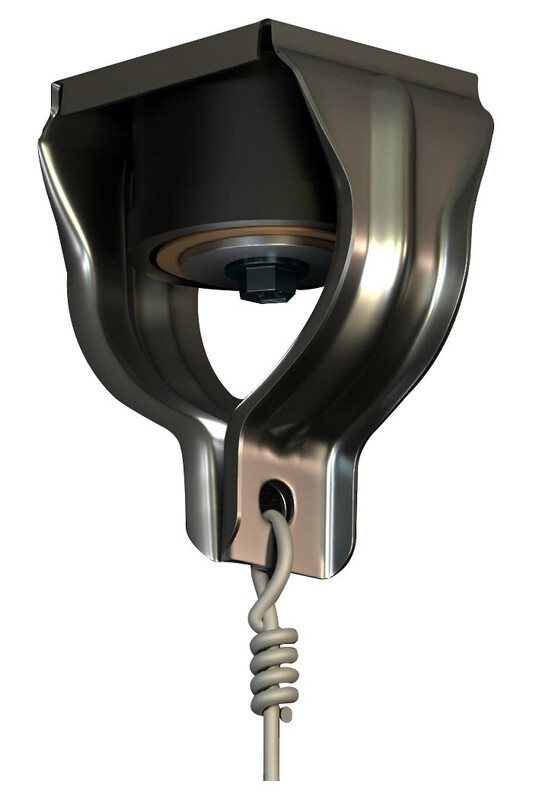

10.8EasyFix Quick Connect Ceiling Hanger

The EasyFix Quick-Connect Ceiling Hanger is your ultimate solution for fast, reliable installation in acoustic ceiling applications. Designed to be versatile and efficient, EasyFix can be securely attached to concrete, metal deck, or structural framing, offering unmatched flexibility in various building environments. The system supports the installation of gypsum boards using either drywall ceiling grids or cold-rolled drywall furring channels, making it the ideal choice for both commercial and residential projects.

Advanced Dual-Deflection Technology for Superior Acoustic Isolation:-

At the heart of EasyFix is an advanced dual-deflection elastomeric isolator, incorporating specially engineered internal bulge zones. These zones allow the isolator to achieve significantly greater deflection while maintaining lateral stability, resulting in superior noise control. This innovative design not only meets but often exceeds the stringent STC (Sound Transmission Class) and IIC (Impact Insulation Class) requirements, ensuring optimal performance in controlling both airborne and structure-borne noise.

Installation Instruction

Printable Pages:

Printable Page

Features:

Enhanced Acoustic Performance: EasyFix hangers are designed to deliver exceptional noise reduction by maximizing deflection and maintaining stability, ensuring the best acoustic isolation without sacricing ceiling height.

Quick and Efficient Installation: The system's quick-connect feature, combined with a single wire tie point, drastically reduces installation time and labor costs, making EasyFix the most time-effective solution available.

Reliable Deflection Rates: The system provides known deflection rates, ensuring consistent acoustical performance under design loads, which is crucial for meeting project specifcations.

Robust Construction: EasyFix hangers are crafted with bright zinc-plated brackets and a bronze core that prevents over-compression and short-circuiting of the acoustic pathway, offering durability and longevity in demanding environments.

Versatile Attachment Methods: EasyFix can be installed using various methods, including suspension tie wire, suspension angle, or suspension strap, adapting to different ceiling structures and installation needs.

Please contact us for larger volume orders as further discounts may apply.

Model Number	Axial Spring Rate	Maximum Static Load	Shipping Weight (lbs)	Price	Quantity	Total
EasyFix		106	0.14				Inquire

Note: When product price is not shown, please call our office for technical consultation prior to place an order

Technical Specifications:-

Load Capacity and Deflection: Available in multiple models to suit different load capacities and deflection requirements, ensuring the right fit for any project.

Materials and Finishes: The hanger brackets are bright zinc plated for corrosion resistance, and the isolation hangers are designed to withstand up to five times their overload capacity without failure.

Applications:-

EasyFix is ideal for securing one or more layers of gypsum board in acoustic ceiling systems. Its versatile attachment options allow for direct installation into concrete using powder-actuated fasteners where loads and regulations permit, or for securing to metal decks and structural frames.
