13.1Heat Pump Fan Coil Rubber Braided Hose Assembly

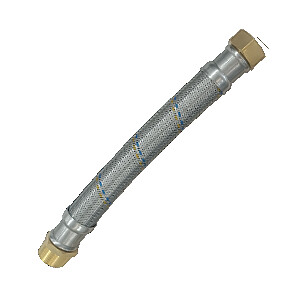

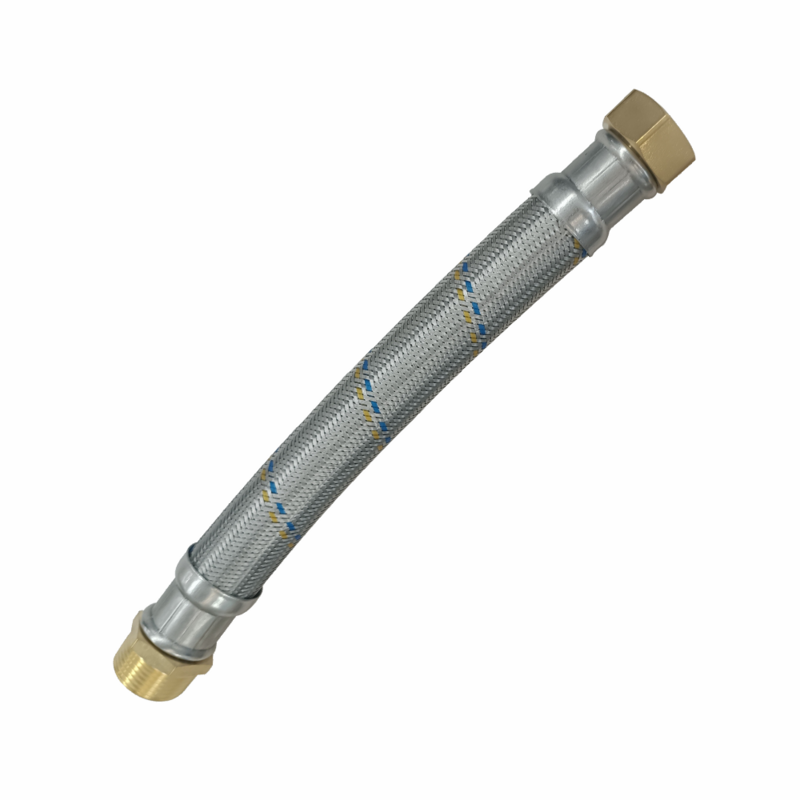

Easyflex FCU / Heat Pump Hose Assemblies are designed to simplify connections between hydronic piping and HVAC terminal units such as fan coils and heat pumps. These flexible, factory-tested assemblies reduce installation time, absorb vibration, and provide long-lasting durability under demanding conditions. Each hose features a smooth EPDM rubber core, reinforced with a 304 stainless steel braid, and includes brass fittings with a swivel connection for easy alignment during installation.
Typical Applications
- Fan coil units (2-pipe and 4-pipe systems)
- Water-source and geothermal heat pumps
- Unit ventilators and cabinet heaters
- Chilled beams and fan-powered terminals
- Condenser water and glycol loops
Why Choose These Assemblies
| Advantage | Description |
| Swivel Design | Allows easy, twist-free installation |
| Long Service Life | UV- and corrosion-resistant materials |
| Lower Installation Cost | Faster than copper piping with fewer fittings |
| Factory-Tested Reliability | Hydro-tested, serialised, and quality-controlled |
| Model No. | I.D. X Length | Ends | Price | Quantity | Total | |
|---|---|---|---|---|---|---|
| EFFCB1/2"X12" | 1/2" X 12" | Solid MNPT x F Swivel & MNPT Adapter | $47.00 USD |
| ||
| EFFCB1/2"X18" | 1/2" X 18" | Solid MNPT x F Swivel & MNPT Adapter | $52.00 USD |
| ||
| EFFCB1/2"X26" | 1/2" X 26" | Solid MNPT x F Swivel & MNPT Adapter | $53.00 USD |
| ||
| EFFCB1/2"X36" | 1/2" X 36" | Solid MNPT x F Swivel & MNPT Adapter | $71.00 USD |
| ||
| EFFCB1/2"X48" | 1/2" X 48" | Solid MNPT x F Swivel & MNPT Adapter | $111.00 USD |
| ||
| EFFCB3/4"X12" | 3/4" X 12" | Solid MNPT x F Swivel & MNPT Adapter | $71.00 USD |
| ||
| EFFCB3/4"X18" | 3/4" X 18" | Solid MNPT x F Swivel & MNPT Adapter | $78.00 USD |
| ||
| EFFCB3/4"X26" | 3/4" X 26" | Solid MNPT x F Swivel & MNPT Adapter | $86.00 USD |
| ||
| EFFCB3/4"X36" | 3/4" X 36" | Solid MNPT x F Swivel & MNPT Adapter | $104.00 USD |
| ||
| EFFCB3/4"X48" | 3/4" X 48" | Solid MNPT x F Swivel & MNPT Adapter | $155.00 USD |
| ||
| EFFCB1"X12" | 1" X 12" | Solid MNPT x F Swivel & MNPT Adapter | $119.00 USD |
| ||
| EFFCB1"X18" | 1" X 18" | Solid MNPT x F Swivel & MNPT Adapter | $125.00 USD |
| ||
| EFFCB1"X26" | 1" X 26" | Solid MNPT x F Swivel & MNPT Adapter | $150.00 USD |
| ||
| EFFCB1"X36" | 1" X 36" | Solid MNPT x F Swivel & MNPT Adapter | $170.00 USD |
| ||
| EFFCB1"X48" | 1" X 48" | Solid MNPT x F Swivel & MNPT Adapter | $185.00 USD |
|
Installation Guidelines
- Do not twist the hose; hold the body while tightening the swivel nut
- Respect the minimum bend radius—avoid kinking
- Use pipe supports to prevent excessive sag
- Pressure test the system after installation
- Inspect yearly and replace after visible wear or 5 years of service
