14.1Seismic Restraint Kit

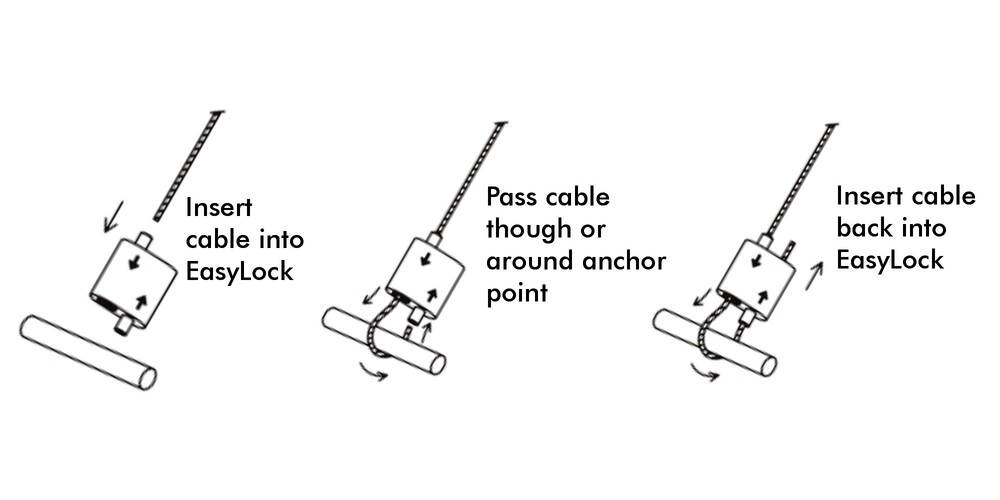

AN INTRODUCTION TO EASYFLEX SEISMIC KIT



Easyflex Seismic Kit are designed and engineered to brace andsecure non-structural equipment and services within a building or structure to minimise earthquake damage to suspended services.

Easyflex Seismic Kit are ideal for use on non-structural equipment and services requiring seismic support, such as essential facilities that are required for emergency operations in the aftermath of an earthquake.

Advantages:-

Complete pre-engineered systems-

Easyflex offer a complete system-

No additional swaging required on site-

Up to 10 times faster to install- No tools require

Model No.SAFE WORKING LOAD (lbs)SizePriceQuantityTotal
EFSK-2R220Seismic Kit R 2 Metres      Inquire
EFSK-3R220Seismic Kit R 3 Metres      Inquire
EFSK-5R220Seismic Kit R 5 Metres      Inquire
EFSK-2B586 Seismic Kit B 2 Metres      Inquire
EFSK-3B586 Seismic Kit B 3 Metres      Inquire
EFSK-5B586 Seismic Kit B 5 Metres      Inquire
EFSK-2GY1349 Seismic Kit GY 2 Metres      Inquire
EFSK-3GY1349 Seismic Kit GY 3 Metres      Inquire
EFSK-5GY1349 Seismic Kit GY 5 Metres      Inquire
EFSK-2N2646 Seismic Kit N 2 Metres      Inquire
EFSK-3N2646 Seismic Kit N 3 Metres      Inquire
EFSK-5N2646 Seismic Kit N 5 Metres      Inquire
Note: When product price is not shown, please call our office for technical consultation prior to place an order

THE DIFFERENCE BETWEEN STRUCTURAL AND NON-STRUCTURAL COMPONENTS



Structural components are made up of roofs, floors, beams, columns, foundations, walls, whereas non structural components are architectural elements, mechanical and electrical equipment and supplies and other building furniture. Non-Structural components are very important in the correct functioning of a building in the aftermath of an earthquake. Bracing these systems ensures higher safety levels for the occupants of the building.

EASYFLEX SEISMIC KIT AND IDENTIFICATION

The Easyflex Seismic Kit are available in kit form, comprising:-

Pre-determined length of wire, with a seismic bracket end-

Seismic rod bracket-

Easyflex
