3.1Cup Spring Mounts

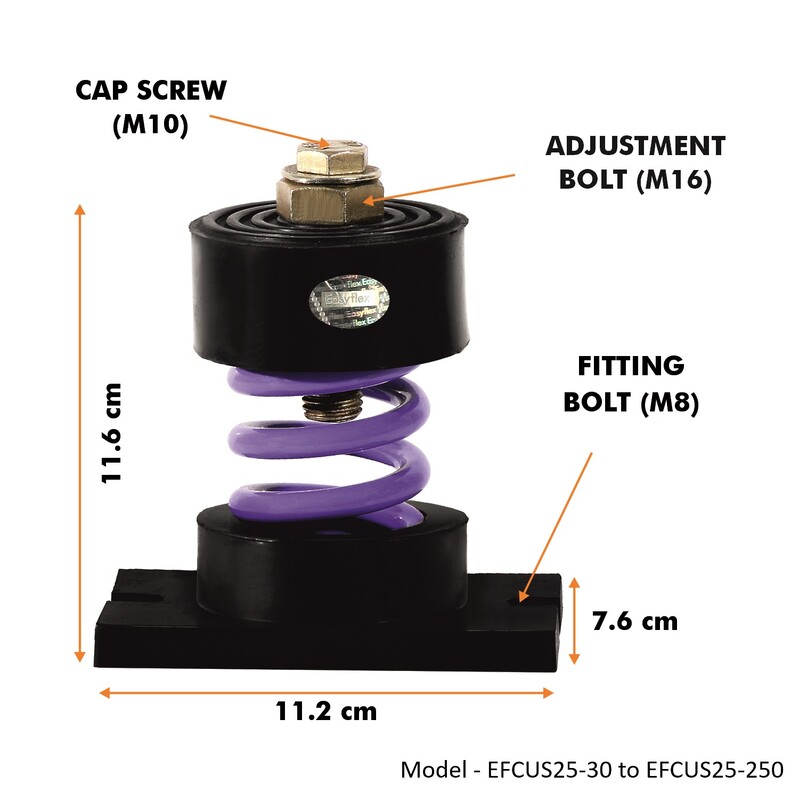

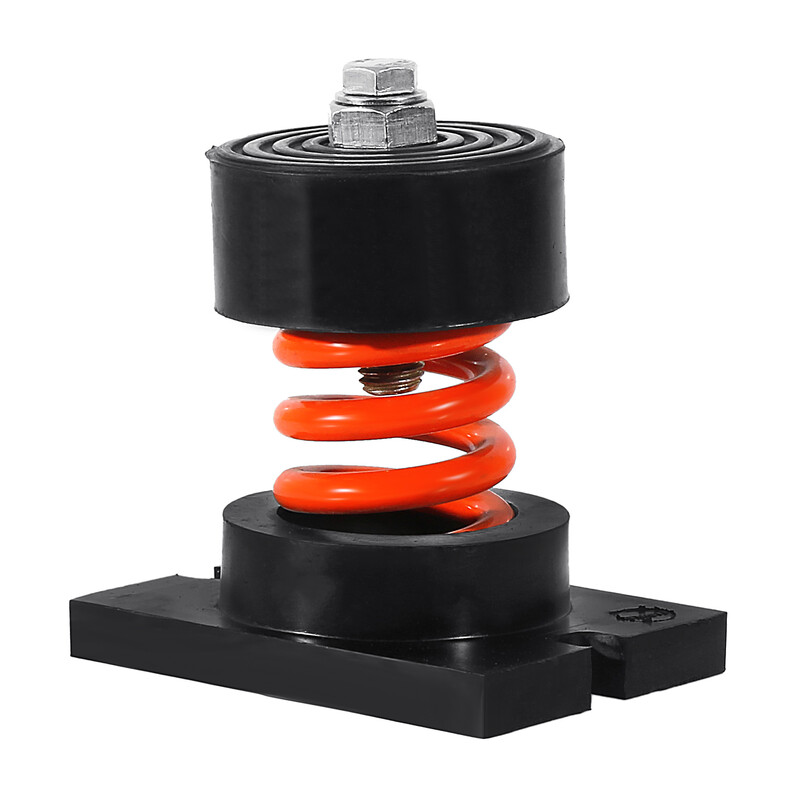

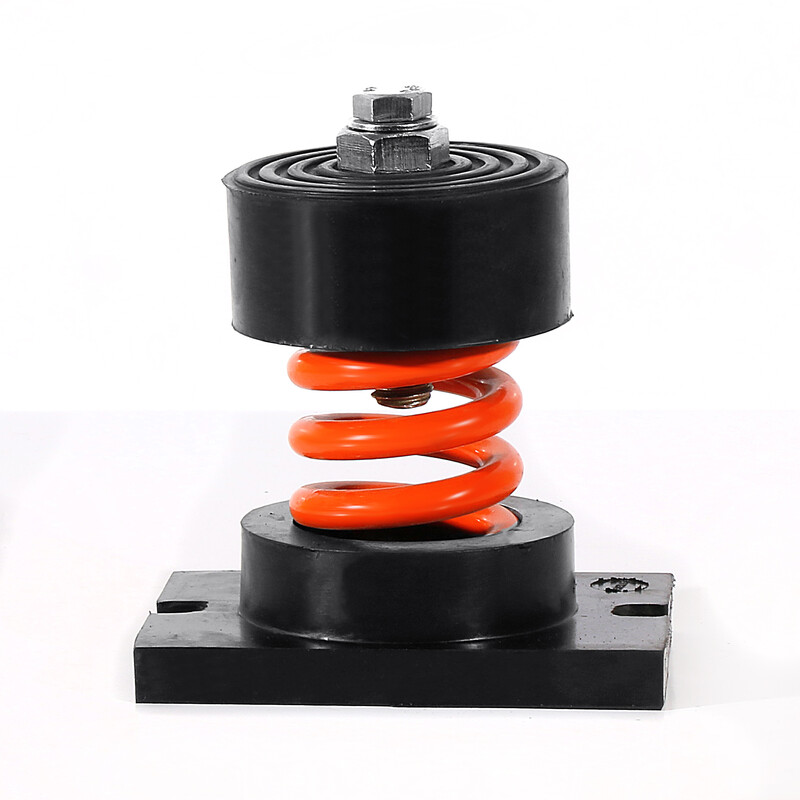

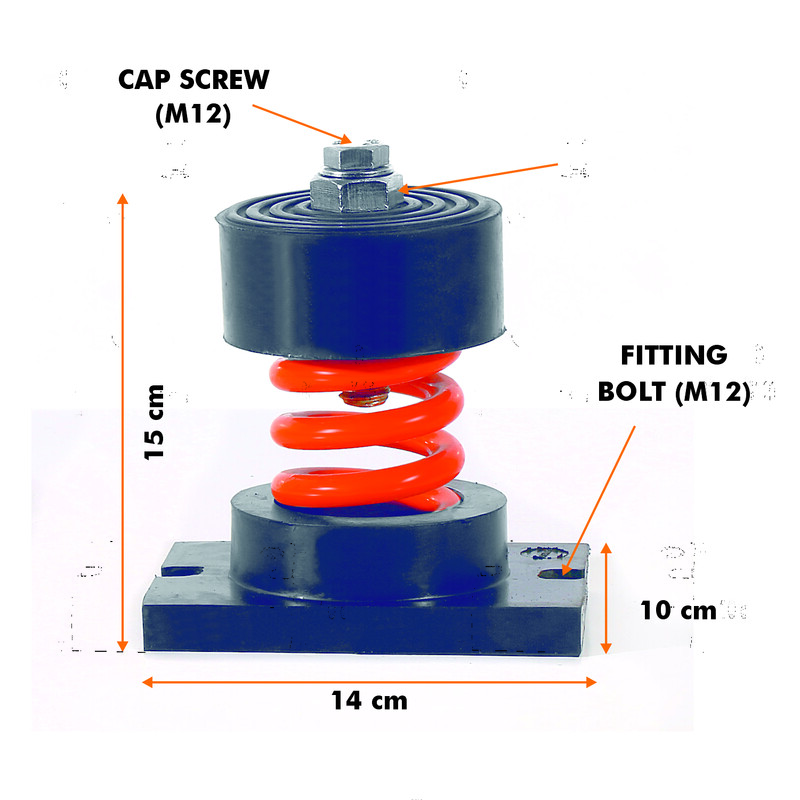

Easyflex Cup Spring Mounts are specially designed to isolate mechanical equipment where both high and low-frequency vibration control is required. These mounts incorporate a laterally stable spring encased in a neoprene acoustical cup, ensuring superior performance in environments where noise sensitivity and system stability are critical. They are particularly suited for equipment installations adjacent to quiet zones, such as offices, studios, and residential areas.
Features:
| Model | Rated Load (lbs) | Deflection at Rated Load (in) | Spring Rate (lbs/in) | Spring Colour | Shipping Weight (lbs) | Price | Quantity | Total | |
|---|---|---|---|---|---|---|---|---|---|
| EFCUS | 66 | 1 | 66 | YELLOW | 1.6 | $70.00 USD |
| ||
| EFCUS | 132 | 1 | 132 | BLUE | 1.6 | - | - | Inquire | |
| EFCUS 25-100 | 220 | 1 | 220 | GREEN | 1.6 | - | - | Inquire | |
| EFCUS 25-160 | 352 | 1 | 352 | GREEN | 1.6 | ||||
| EFCUS 25-200 | 440 | 1 | 440 | RED | 1.6 | ||||
| EFCUS 25-250 | 550 | 1 | 550 | PURPLE | 1.8 | ||||
| EFCUS 25-300 | 660 | 1 | 660 | GREY | 2 | ||||
| EFCUS 25-400 | 880 | 1 | 880 | ORANGE | 3 | ||||
| EFCUS 25-500 | 1100 | 1 | 1100 | BROWN | 5 | ||||
| EFCUS 25-600 | 1320 | 1 | 1320 | BLACK | 5 | ||||
| EFCUS 25-800 | 1760 | 1 | 1760 | RED | 6 | ||||
| EFCUS 25-1050 | 2310 | 1 | 2310 | WHITE | 8 | ||||
| EFCUS 25-1250 | 2750 | 1 | 2750 | GREEN | 8 |
Applications: Cup Spring Mounts are highly effective for isolating noise and vibration in the following types of equipment:
Reciprocating refrigeration compressors
HVAC air handling units and packaged rooftop systems
Centrifugal and axial fans
Inertia bases
Base-mounted pumps
Internal combustion engines
Sound-sensitive environments such as studios, labs, and hospitals
Installation Guidance
Ensure evenly distributed loads across all mounts used.
Place mounts directly under the manufacturer-recommended support points.
Securely anchor using bolt-through holes in the base plate where necessary.
Avoid overloading; follow the rated load and deflection chart.
Compliance - Springs designed according to BS 1726 (Part 1) and recommendations made by SAE (US) and ASHRAE.
